Relay 160 57 Plate Rear Exhaust Box

[Andylink]

Im having a problem finding a the rear silencer exhaust box for my van. Anyone know if there are any available anywhere? even Citroen are having trouble supplying one. It the iveco 160 engine. Wondered if its the same part as the Fiat version ?

Thanks

Andy

[paul.h]

There are different part numbers for the Relay so probably easiest if you look at the parts diagrams using your VIN, then use the Citroen part number in google/ebay to do a search to see if any are available. Register on the service.citroen site as an other professional non emergency services and then as a member of the Citroen Owners Club. Once on the site use your VIN (VIS) top left to find your vehicle and look under Mechanical, Engine, Exhaust. http://service.citroen.com/do/changerParametres you might need to select your language first.



A search on part 1730W9 came up with this but I do not know if this would fit but it looks like the parts diagram picture for the Relay 3, 3.0 160 engine rather that the 2.2 hdi ones http://www.ebay.co.uk/itm/Citroen-Relay-2-2-Hdi-Exhaust-/372002188382?hash=item569d0eec5e:g:RRYAAOSwrx5UWUr3

[Andylink]

Thanks you for the information, I followed your advice and registered on the Citroen service parts web site. I entered my vin number and the exhaust parts displays a picture that is not the same as my exhaust back box, maybe its showing a LHD one?

Here is my vin number if any one can help: VF7YCDMFC11299499

Both in and out pipes on mine enter at one end of the box, in fact it looks like the one on ebay on the link in the post above, except the clamp is a sleve type, and not a standard clamp.

[paul.h]

You need to check if the van has an exhaust particle filter (DPF) - the service.citroen site using your VIN under vehicle characteristics says it does not have one (TURBO DIESEL F 30DT WITHOUT FAP) and therefore it does not show one - hence the exhaust shows as 1730V9. If you have the DPF (FAP) instead of using your VIN, use new vehicle and then pick a Relay 3, 3.0 hdi FAP, (I do not think you have a euro 5 engine) the parts diagrams come out as 1730W9.



In the parts diagram the clip looks to be quite wide and not a U bolt clamp, so maybe it is the one you have. I would be tempted to measure/photo your exhaust and contact the one in the link, just in case they have it labelled wrong or it fits your van anyway.



Do you know if the exhaust has been previously replaced ? There might also be another Citroen part number on the silencer such as CIT---- which could be worth a search.



This might also fit if the tail pipe can go at the opposite side to your existing one http://www.ebay.co.uk/itm/Fiat-Ducato-3-0-TD-116-KW-158-HP-Box-since-06-2006-Silencer-Exhaust-System-C48-/371468901647?fits=Model%3ARelay&hash=item567d459d0f:g:mSAAAOSw9mFWJ36B

[Andylink]

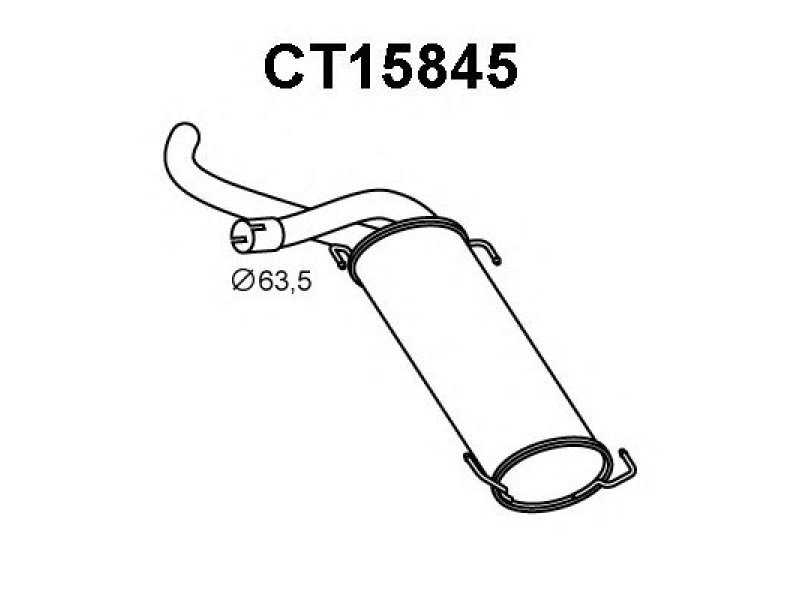

Thank you for your help on this, I am not sure if I have a dpf is it like an extra small box? a seach on 1730V9 comes up with this picture:

http://www.iauto.lt/images/cache/GraphicsData/d/be/dbea125c43fa29b1aaadc94776484dea-800x600.15003750938.jpg

Which does look like the correct one. But I dont know if I will be able to find one anywhere

[paul.h]

Using the CT15845 in a search comes back with this which lists is as for RH drive and also CT15844 for LH drive. The mountings will be the same but the tail pipe is just on the other side so the fumes go to the middle of the road in each case. http://www.tecdoc-module.eu/autoparts/citro%C3%ABn/relay/3.0hdi145/exhaust/silencer/?of=m5576;t33787;s10414



Then on that site if you click on analogues it gives other makes for the same part http://www.tecdoc-module.eu/autoparts/search/CT15845/VENEPORTE/ which can lead to more searches but there do not seem to be any available.



If you can not get an exhaust then you could always have one made at a custom exhaust supplier. A search comes up with lots of companies who do this so you could enquire at one nearest to you. As an example https://www.powerflowexhausts.co.uk/index.php?route=product%2Fapplication_guide%2Fecu&make=CITROEN&model=RELAY&year=2007&engine=3.0+HDi+160



If you go back to the parts diagrams and look at the exhaust for a FAP 3.0 hdi van, it will show you what to look for but they are usually a large diameter cylinder.
